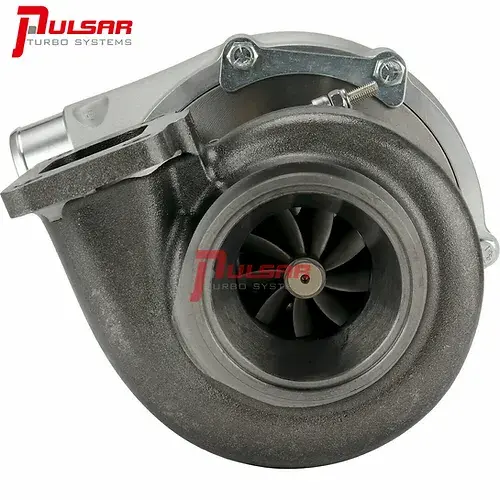

Pulsar PSR6255G



  • Recommended displacement 2.0 to 3.5 litres with power outputs up to 900hp possible.
  • Dual Ceramic ball bearing system provides optimal turbo response & better durability by reducing play in the shaft.
  • 9 Blade G-Aero Billet Compressor Wheel with Extended Tapered Tip Technology
  • 9 Blade G-Aero Inconel 713c Turbine Wheel
  • T3 1.01 housing option comes with adapter as per image.
  • Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port





It's strongly recommended to run water cooling to aid reliability.



Please note, T51R housing option requires an extra 7 days handling time

Pulsar PTG Series PSR6255G / 30-900

£713.00Price
VAT Included
  • Compressor Wheel: 62*76mm
  • Turbine Wheel: 60*55mm
  • Compressor Inlet: 4″ Hose
  • Compressor Outlet: 2″ Hose
  • Turbine Inlet: T3 or T4
  • Turbine Outlet: 3″ V-Band
  • Water Ports: 2-M14 X 1.5
  • Oil Inlet: 7/16-24 UNF with a -4AN Restrictor pre-installed
  • Oil Outlet: Std T3 Oil Drain Flange
