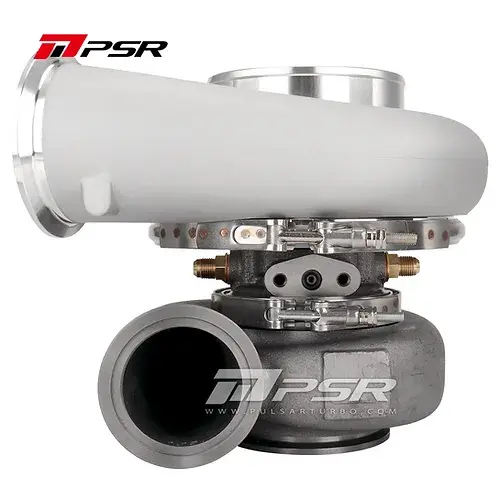

Pulsar PTG Series PSR Class Legal 6275G

PSR Class Legal 6275G



  • PSR Class Legal Turbo with 62/98mm Compressor wheel

  • Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion

  • 10 Blade G-Aero billet compressor wheel with extended tapered tip technology

  • 9 Blade G-Aero Inconel 713c turbine wheel

  • Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port

  • 7 Turbine housing options available



It is strongly recommended to run water cooling to aid reliability (needed for warranty)



Please note, T51R housing option requires an extra 7 days handling time

Pulsar PTG Series PSR Class Legal 6275G

£1,304.08Price
VAT Included
Quantity

  • Compressor Wheel: 62*98mm

  • Turbine Wheel: 82*75mm

  • Compressor Inlet: 5″ Hose

  • Compressor Outlet: 3″ V-Band

  • Turbine Inlet: 3″ V-Band

  • Turbine Outlet: 3.5″ V-Band

  • Water Ports: -6AN

  • Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)

  • Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange Kit Incl’)

  • A 4" turbine outlet adapter flange is also available , please contact us at time of ordering if this is required.
